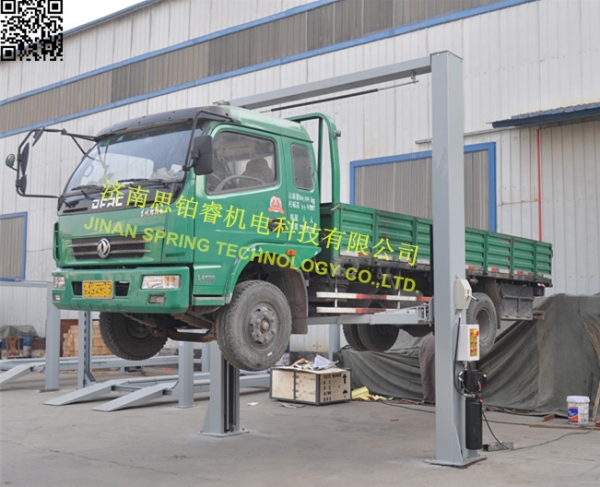

Grantry 2 post car lift
Grantry Two Post Car lift
Advantages
1.Clear floor design,can make the operate in the vehicle under working more easily.
2.By two cylinder,plate and wire rope chain balance system,lifting and lowering smooth.
3.Hydraulic power unit configuration throttling device,can always adjust the rate of decline.
4.Manual mechanical lock release form two sides.
5.24V height switch asymmetric arm design,leaves more space for the cars .
6.Arm uses asymmetric type design,doors open more big.
7.Standard door protection rubber block, protect the door from damage
8.It has adopted 115% dynamic loading capacity and 150% static loading capacity tested.
9.CE certificated.
|
型号 |
Model |
SP-D3500 |
SP-E4000 |
SP-F4500 |
SP-G4500 |
SP-H5000 |
|
举升重量 |
Lifting weight |
3500kg |
4000kg |
4000kg |
4500kg |
5000kg |
|
举升高度 |
Lifting height |
1800mm |
1800mm |
1800mm |
1800mm |
1900mm |
|
最低高度 |
Minimum height |
110mm |
110mm |
110mm |
110mm |
110mm |
|
立柱高度 |
Column height |
3630mm |
3630mm |
3630mm |
3830mm |
4430mm |
|
柱间宽度 |
Width between columns |
2800mm |
2800mm |
2800mm |
2800mm |
3230mm |
|
安装宽度 |
Installation width |
3450mm |
3520mm |
3550mm |
3550mm |
3925mm |
|
上升时间 |
Lifting time |
60s |
60s |
60s |
60s |
70s |
|
下降时间 |
Falling time |
50s |
50s |
50s |
50s |
50s |
|
电机功率 |
Motor power |
2.2kw |
2.2kw |
2.2kw |
2.2kw |
3.0kw |
|
电源电压 |
Power voltage |
110V/220V/240V/380V/415V |
||||
